Technical Spec
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II ? |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |

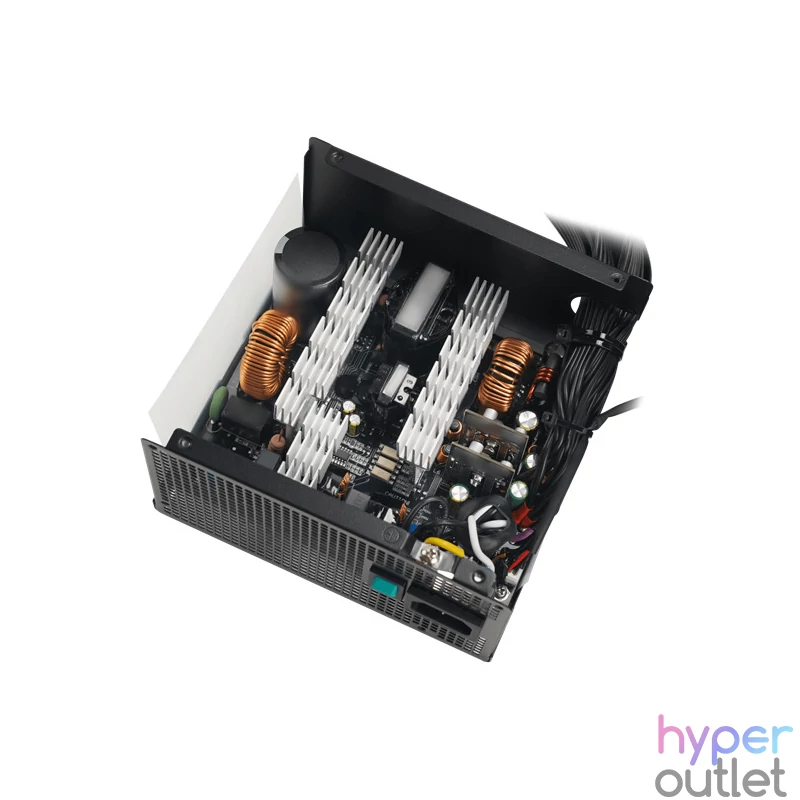

| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40? |
| Regulatory | CE/FCC/CCC/RCM/EAC/BIS/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/?? RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412721130 R-PL650D-FC0B-CN-V2 6933412721147 R-PL650D-FC0B-AU-V2 6933412721154 R-PL650D-FC0B-EU-V2 6933412721161 R-PL650D-FC0B-JP-V2 6933412721178 R-PL650D-FC0B-UK-V2 6933412721185 R-PL650D-FC0B-US-V2 6933412721192 R-PL650D-FC0B-IN-V2 6933412721208 R-PL650D-FC0B-WO-V2 6933412721215 R-PL650D-FC0B-BP-V2 |
Paraméterek:
| ATX | 3 |
| PFC | Aktív |
| Teljesítmény | 650 Watt |
| Hatásfok | 80+Bronze |
| Ventilátor méret | 12 cm |
Szavatosság: a jogszabályi előírások szerint.
Gyártó adatai:
| Megnevezés | DeepCool |
| Cégnév | Deepcool Industries Co., Ltd. |
| Cím | DeepCool Europe, Eindhoven, Hollandia |
| Elérhetőség | https://deepcool.com |
| Weboldal | https://deepcool.com |
