GENERAL SPECIFICATIONS
PRODUCT NAME

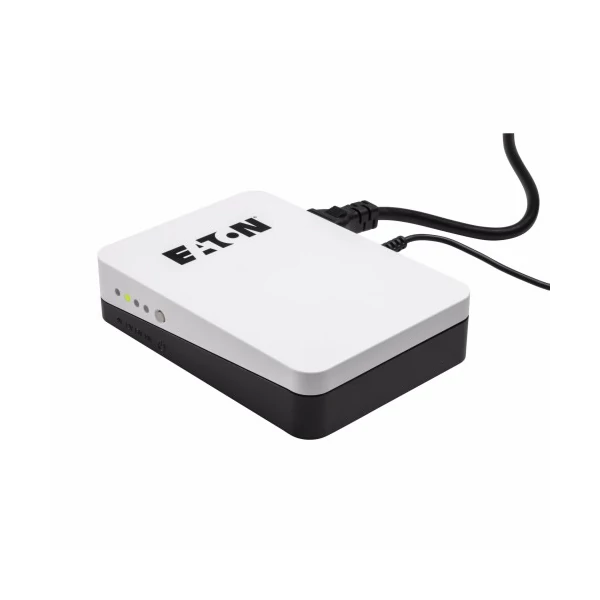

Eaton 3S Mini UPS
CATALOG NUMBER
3SM36
EAN
3553340705014
PRODUCT LENGTH/DEPTH
136 mm
PRODUCT HEIGHT
30 mm
PRODUCT WIDTH
95 mm
PRODUCT WEIGHT
.37 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
CE
IEC/EN 62040-2
IEC 62477-1
IEC 62040-5-3
MODEL CODE
Eaton 3S Mini 36W
PRODUCT SPECIFICATIONS
WATTAGE
36W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Other
INPUT VOLTAGE - MIN
100 V
OUTPUT VOLTAGE - MAX
19 V
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lithium-ion
EFFICIENCY
78
SPECIAL FEATURES
Attractive design and glossy finish make the 3S a perfect fit for the modern office environment|Compact unit fits on or under your desk|4 Barrel adaptators to connect your device|LED indicator providing information about output voltage or remaining battery capacity|2200 mAh Battery (2 cells)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
12 V
COLOR
Black/White
EXTENDED BATTERY CAPABILITY
No
TOPOLOGY
Offline
SURGE PROTECTION
No
BACK-UP TIME
11 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE - MAX
240 V
VOLTAGE TYPE
AC/DC
BATTERY MANAGEMENT
Replaceable batteries
AUTO SHUTDOWN FUNCTION
No
OPERATING TEMPERATURE - MIN
0 °C
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(4) Barrel adaptators
PHASE (INPUT)
1
PACKAGE CONTENTS
UPS|Input cable|(4) Barrel adaptators|Quickstart guide
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
2
OPERATING TEMPERATURE - MAX
35 °C
INPUT CORD LENGTH
1 m
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-85% non-condensing
RACK MOUNTING KIT
No
RUNTIME AT FULL LOAD
11 min
TYPE OF INTERFACE
None
PRIMARY FREQUENCY - MIN
46 Hz
BATTERY RATING
2200 mAh
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
9 V (12/15/19 V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
100-240 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
2000 m
Paraméterek:
| Típus | Akkumulátor |
| Kialakítás | Torony |
